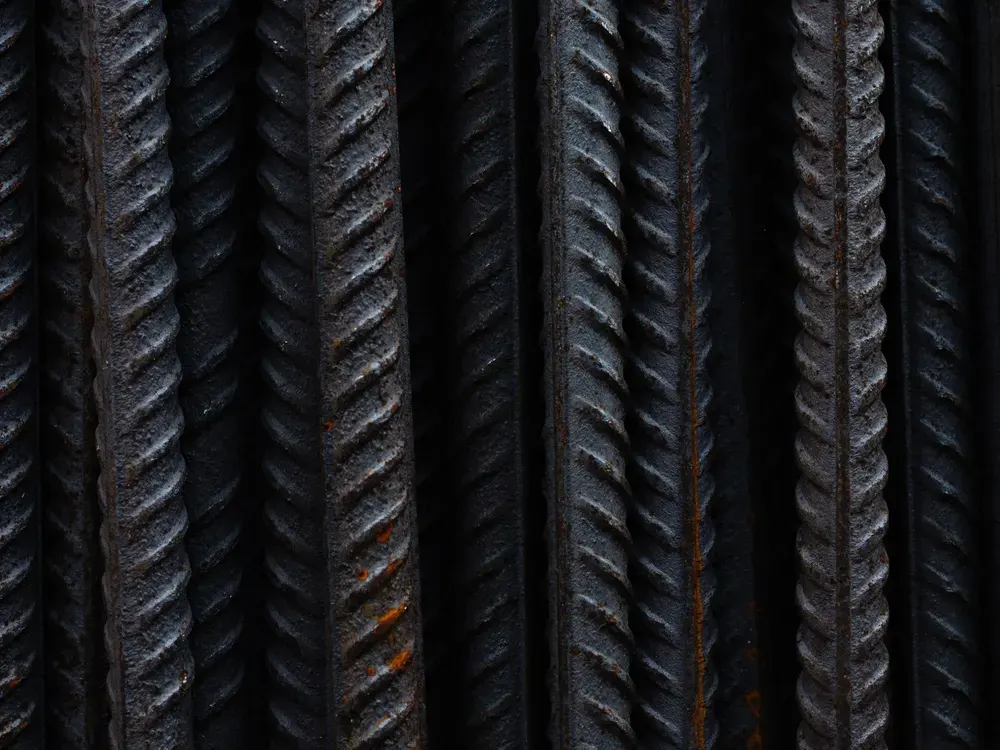

Deformed Bar (Rebar)
D10 – D50
The standard structural reinforcing bar for concrete construction, rolled in thirteen diameters from D10 to D50 and certified to Vietnamese, Japanese and American standards. Every bar carries a rolled-in mill mark and diameter index, so material can be traced from the site back to the cast.
- Thirteen diameters, D10 through D50
- Nine grades across three standards
- Standard 11.7 m length; bundles run 2.6 – 2.8 t
- Mill test certificate issued per heat number
- TCVN 1651-2:2018
- JIS G 3112:2020
- ASTM A615M-20
Technical specifications
Dimensions, mass and bundling
| Size | Mass (kg/m) | Mass per bar (kg) | Bars per bundle | Bundle (t) |
|---|---|---|---|---|
| D10 | 0.617 | 7.22 | 300 | 2.165 |
| D12 | 0.888 | 10.39 | 260 | 2.701 |
| D14 | 1.21 | 14.16 | 190 | 2.689 |
| D16 | 1.58 | 18.49 | 150 | 2.772 |
| D18 | 2.00 | 23.40 | 115 | 2.691 |
| D20 | 2.47 | 28.90 | 95 | 2.745 |
| D22 | 2.98 | 34.87 | 76 | 2.649 |
| D25 | 3.85 | 45.05 | 60 | 2.702 |
| D28 | 4.84 | 56.63 | 48 | 2.718 |
| D32 | 6.31 | 73.83 | 36 | 2.657 |
| D36 | 7.99 | 93.48 | 28 | 2.617 |
| D40 | 9.86 | 115.36 | 24 | 2.768 |
| D50 | 15.42 | 180.41 | 15 | 2.706 |
To TCVN 1651-2:2018. Bundle counts and weights are nominal.
Mechanical properties — TCVN 1651-2:2018
| Grade | Yield min (N/mm²) | Tensile min (N/mm²) | Elongation min | Bend |
|---|---|---|---|---|
| CB300-V | 300 | 450 | 16% | 180° · 3d–7d by size |
| CB400-V | 400 | 570 | 14% | 180° · 4d–7d by size |
| CB500-V | 500 | 650 | 14% | 180° · 5d–7d by size |
Mechanical properties — JIS G 3112:2020
| Grade | Yield min (N/mm²) | Tensile (N/mm²) | Elongation min | Bend |
|---|---|---|---|---|
| SD 295 | 295 | 440 – 600 | 16 – 17% | 180° · R 1.5d–2.0d |
| SD 390 | 390 | 560 min | 16 – 17% | 180° · R 2.5d |
| SD 490 | 490 | 620 min | 12 – 13% | 90° · R 2.0d |
Mechanical properties — ASTM A615M-20
| Grade | Yield min (N/mm²) | Tensile min (N/mm²) | Elongation min | Bend |
|---|---|---|---|---|
| Grade 40 | 280 | 420 | 11 – 12% | 180° · 3.5d–5d |
| Grade 60 | 420 | 550 | 7 – 9% | 180°/90° · 3.5d–9d |
Available in metric or inch-pound dimensions.
Rib geometry — JIS G 3112:2020
| Size | Nominal Ø (mm) | Rib spacing (mm) | Rib height (mm) | Rib width sum (mm) |
|---|---|---|---|---|
| D10 | 9.53 | 6.7 | 0.4 – 0.8 | 7.5 |
| D13 | 12.7 | 8.9 | 0.5 – 1.0 | 10 |
| D16 | 15.9 | 11.1 | 0.7 – 1.4 | 12.5 |
| D19 | 19.1 | 13.4 | 1.0 – 2.0 | 15 |
| D22 | 22.2 | 15.5 | 1.1 – 2.2 | 17.5 |
| D25 | 25.4 | 17.8 | 1.3 – 2.6 | 20 |
| D29 | 28.6 | 20.0 | 1.4 – 2.8 | 22.5 |
| D32 | 31.8 | 22.3 | 1.6 – 3.2 | 25 |
| D35 | 34.9 | 24.4 | 1.7 – 3.4 | 27.5 |
| D38 | 38.1 | 26.7 | 1.9 – 3.8 | 30 |
| D41 | 41.3 | 28.9 | 2.1 – 4.2 | 32.5 |
| D51 | 50.8 | 35.6 | 2.5 – 5.0 | 40 |
Figures are the mill’s published specifications. Acceptance against AS/NZS 4671 or any project-specific requirement must be confirmed with your engineer before ordering.
Mill test certificates are issued per heat and supplied with the shipping documents.
